Wireless Microphone
XSW 1-ME2
Easy to use wireless system for public speakers and presenters with up to 10 compatible channels. Excellent for a powerful and inspiring presentation.

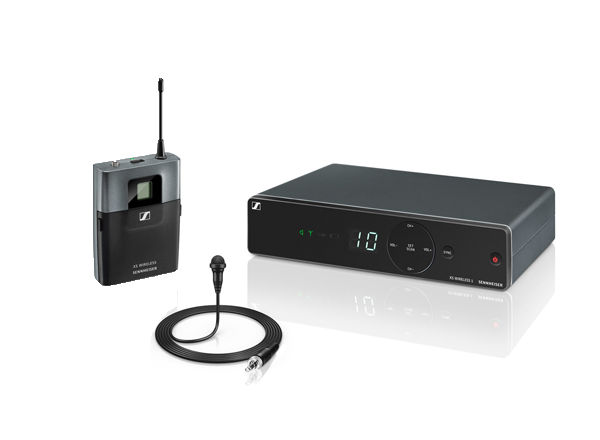

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
- Compact bodypack transmitter, unobstrusive clip-on microphone
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications
| Model | XSW 1-ME2 |
|---|---|
| Dimensions | approx. 200 x 42 x 127 mm |
| Power supply | 12 V DC nom. / 300 mA |
| AF frequency response | 50 to 16,000 Hz (–3 dB) |
| Microphone | condenser |
| Output voltage | '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Squelch | adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| THD, total harmonic distortion | ≤ 0.9% |
| Housing | rugged ABS housing |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Pick-up pattern | omni-directional |
| Diversity reception | antenna switching diversity via internal antennas |
| Input sensitivity | 1.5 mV / Pa |
| Signal-to-noise ratio | ≥ 103 dBA |
| Frequency | 8 frequency banks, each with up to 10 factory-preset channels |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Switching bandwidth | up to 24 MHz |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz, C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz |
| Temperature Range | operation: 0°C to +40°C, storage: –20°C to +70°C |
| Modulation | wideband FM |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Receiver Principle | double superheterodyne |
| SPL for peak deviation | 130 dB |
